Specifications

Type :

Position :

Technology :

Ease of installation:

Ease of maintenance:

Sizes available:

Speed:

Temperature range :

pH range :

Philosophy:

Returnable double sealing skirt

Sides of conveying

Adjustable mobile external seal

+++

+++

20m

5 m/s max

-10 to 50°C

5 to 9

Top notch result design

Technology

The idea :

​

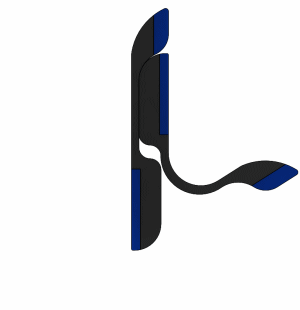

A strong first skirt to stop material with a additional flexible mobile skirt to encapsulate the smallest dust

Polyurethane reinfrocement on key points and possibility to reverse it to double the lifetime

The result :

​

The Gemini skirt is a long lasting and top result sealing system

Designed by TechnicGum in Belgium

Why is it better ?

Other solutions                                 vs                                      Gemini skirt

Simple skirt can only stop biggest material

Double skirt system has single lifetime

Gemini skirt maximises the sealing

Gemini skirt is reversible for double lifetime

Junction on single skirt has sealing issue

Gemini skirt is made of 2 separate part that can be installed staggered to improve sealing

Design

Every single details on the Gemini skirt was designed with "Top sealing" keyword in mind:

Please note the Gemini skirt and the BigBen3 clamp are sold separately

Product range

Quality

- High abrasion resistant polyurethane and rubber in 20m rolls

- Special quality on demand

​

Good to know

The combination of the  BigBen-3  skirt clamp and the dual sealing  Gemini skirt  gives a very easy to use high efficiency sealing system
