Versatile.

RF-NT2018 r1.png

Specifications

Type :

Position :

Technology :

Ease of installation:

Ease of maintenance:

Sizes available:

Speed 1 way:

Speed 2 ways:

Temperature range :

pH range :

Philosophy:

Wear compensation multi-blade

Primary cleaner

Patented dual-shore rubber

++

++

500 to 1400 belt (...2200 NT-HD)

2 m/s max (4 m/s NT-HD)

1,5 m/s max (2,5 m/s NT-HD)

-10 to 50°C

4 to 10

Versatility and Cost effective

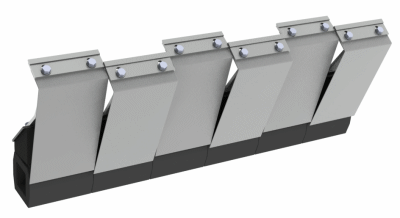

RacloFlex NT standard 2018 rota.gif

Get the Job done!

Technology

The idea :

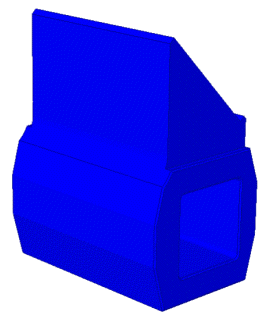

Segment the scraper into several small ones each having their own structure, elasticity and adjustement

- Lower part made of abrasion resitant rubber

- Higher part made of elastic rubber

The result :



The RacloFlex NT can adapt any situation and usage with a high cleaning result

Due to its strong and specific design, the RacloFlex NT is very efficient on 2 ways belts

Designed by TechnicGum in Belgium

Produced and assembled in European Union

Why is it better ?

Other belt cleaners                               vs                                 RacloFlex NT

Wear Gap due to lack of adjustement

No Gap

Rubber bloc size - Quantity of elastomer ±10g versus competitors

560g

The structure is exposed to severe condition in the most dirty place of the conveyor

980g

The structure is perfectly protected to ensure a long lifetime

Design

Every single details on the RacloFlex NT have been developped with "Inexpensive" and "Polyvalent keywords in mind

Demonstrations :

Product range

Blade

- Wear resistant Tungsten carbide : 1750 Hv / 93 HRA 3x10mm (5x10/NT-HD)

- Impact resistant carbide : 900 Hv / 66 HRA 5x10mm

- Wear resistant Aluminate ceramic : 1200 Hv / 75 HRA 7x10mm

- Food grade Stainless steel: 180 Hv / 15 HRA - 5x20mm

Design

- Standard design sent in short time

- Heavy Duty Design 1400-2200mm belt : RacloFlex NT-HD

- Special quality rubber bloc (ex: oil resistant)

- Any special

Options

- All or part stainless steel

- Multitool Key

Good to know

Installing jointly the  RacloFlex  and the  RacloFlex NT  is an easy way obtain the best cleaning solution available

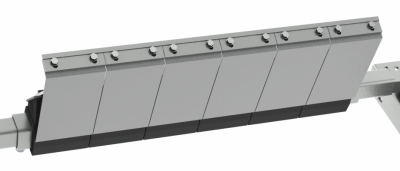

N NT 2018 present r1.png

Documentation

Position Calculation

Use our online Position calculation tool to know exactly how and where to install primary cleaner

 RacloFlex NT

201124 EA X Y Website NT.PNG

 RacloFlex NT-HD

201124 EA X Y Website NT HD.PNG
