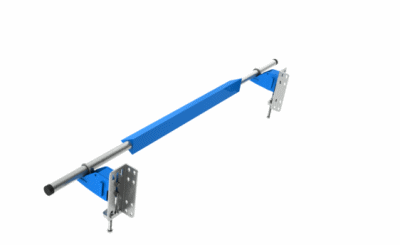

RacloFlex

Trilogy

Economic.

Specifications

Type :

Position :

Technology :

Ease of installation:

Ease of maintenance:

Sizes available:

Speed:

Temperature range :

pH range :

Philosophy:

Triple edge mono-blade

Secondary cleaner

High quality polyurethane

+++

+++

500 to 1400mm belt

3 m/s max

-10 to 50°C

3 to 11

Economic design

Get the Job done!

Why is it better ?

Other cleaners                                  vs                          RacloFlex Trilogy

Rubber blade with 50mm³ DIN53516 abrasion index at best

- Because of the 3 squares shape, the back of the cleaner coul be clogged and lift up the belt

- The big thickness of the blade dissipate the cleaning pressure

Polyurethane blade with 25mm³ DIN53516

- Thanks to the triangle shape, the back of the blade increase flowing of material and greatly reduce clogging

- The sharp top edge of the blade allow concentrated pressure for a better cleaning

Product range

Blade

- Wear resistant polyurethane : 25mm³ /DIN53516-10N

- Hydrolisis resistant polyurethane

- Food grade polyurethane

Design

- Standard design sent in short time

- Heavy Duty Design 1400-2200mm belt : RacloFlex WP-HD

- Any special

Options

- All or part stainless steel

Documentation
