Specifications

Type :

Position :

Technologie :

Ease of installation :

Ease of maintenance :

Sizes available :

Speed :

Temperature range :

pH range :

Philosophy:

Automatic adjustement multi-blade

Primary cleaner

Spring and twist independent blade

+++

+++

500 to 1400 belt (...2200 Z²HD)

2 m/s max (4 m/s Z²HD)

-10 to 50°C

3 to 11

Easy & Quick operations

Technology

The idea :

​

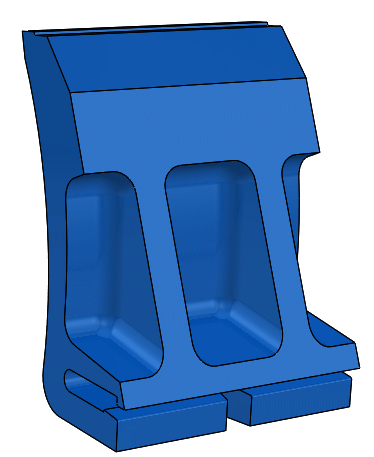

Each blade is designed as a small cleaner with own spring tension system and wide mobility

The result :

​

There is never a gap in the center of the blade

= top-notch cleaning during all the life of the cleaner

Why is it better ?

Other belt cleaners                         vs                                RacloFlex Z²

Gap due to center wearing

Complete change

External tension

No Gap

Change only what is needed

Internal tension on each blade

Design

Every single details on the RacloFlex Z² have been developped with "Easy" and "Fast" keywords in mind:

Quick fixing blades, shaft and pressure / Lightweigth & Strong / Ergonomic and Safe

Demonstrations:

Independent movements of the blades:

Splicing passage:

Product range

Blades

- Wear resistant Tungsten carbide : 1750 Hv / 93 HRA 3x10mm (5x10/N-(HD)

- Impact resistant carbide : 900 Hv / 66 HRA 5x10mm

- Wear resistant polyurethane : 25mm³ /DIN53516-10N

- Wear & chemical resistant Ceramic : 1200 Hv / 75 HRA 7x10mm

- Hydrolisis resistant polyurethane

- Food grade polyurethane

​

​

Design

- Standard design sent in short time

- Heavy Duty version 1400-2200mm : RacloFlex Z²HD

- Any special design

​

​

Options

- All or part stainless steel

- Pulling pressure

- Rotating pressure

- Shifting rings

- Multitool Key

Good to know

Installing jointly the  RacloFlex Sw  and the  RacloFlex Z²  is an easy way obtain the best cleaning solution available
