Specifications

Type :

Position :

Technology :

Ease of installation:

Ease of maintenance:

Sizes available:

Speed:

Temperature range :

pH range :

Philosophy:

Double sealing skirt

Sides of conveying

Mobile external seal

+++

+++

20m

5 m/s max

-10 to 50°C

5 to 9

Top notch result design

Technology

The idea :

​

A strong first skirt to stop material with a additional flexible mobile skirt to encapsulate the smallest dust

Polyurethane reinfrocement on key points

The result :

​

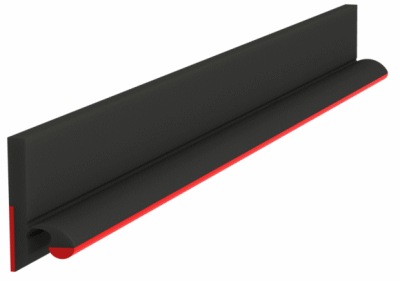

The TWIN skirt is a long lasting and top result sealing system that can be simply installed in place of standard skirt

Why is it better ?

Other solutions                                 vs                                      Twin skirt

Simple skirt can only stop biggest material

It's very difficult to adapt a standard skirt to the shape of the belt to have a efficient sealing

Twin skirt maximises the sealing

The TWIN skirt adapts itself to the shape of the belt

Design

Every single details on the Twin skirt was designed with "Top sealing" keyword in mind:

Please note the Twin skirt and the BigBen3 clamp are sold separately

Product range

Quality

- High abrasion resistant polyurethane and rubber in 20m rolls

- Special quality on demand

​

Good to know

The combination of the  BigBen-3  skirt clamp and the dual sealing  Twin skirt  gives a very easy to use high efficiency sealing system
